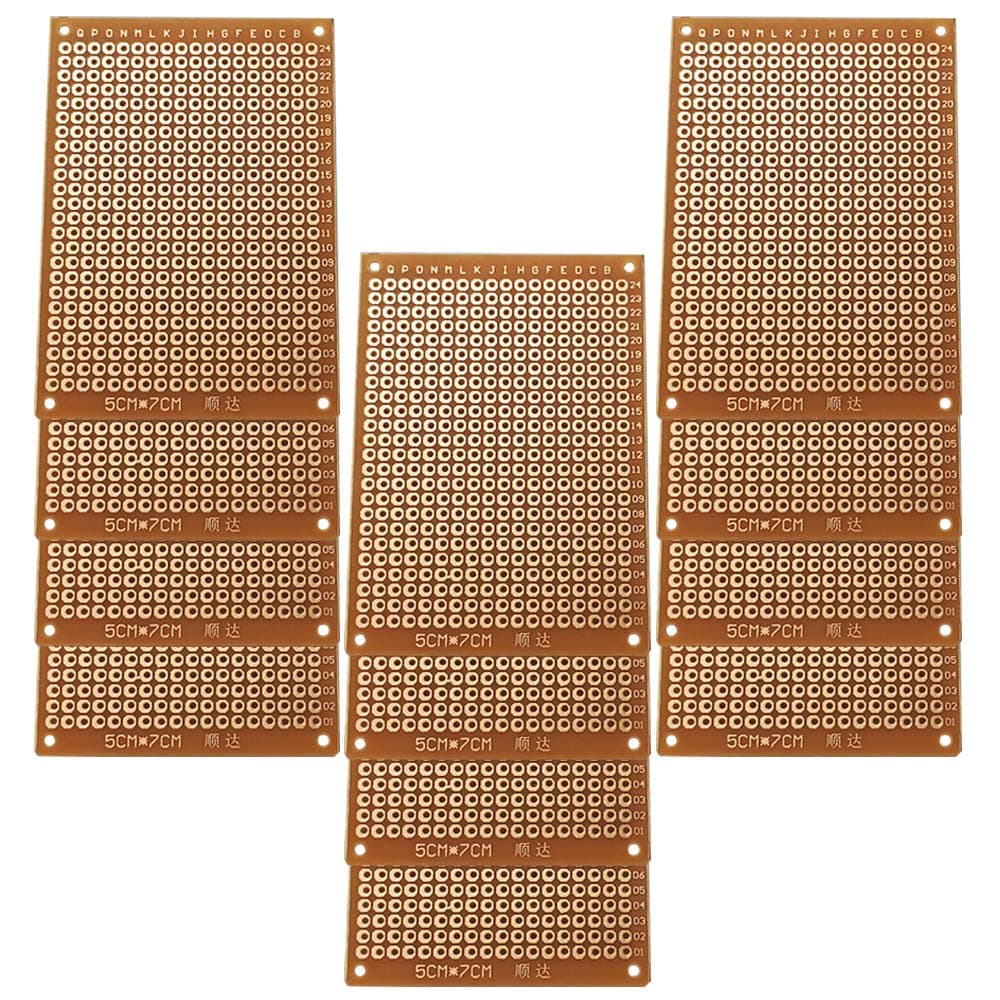

GTIWUNG 12Pcs Universal PCB Board, Double Side Prototyping Board, Prototype Board Kit, Circuit Boards Perfboards for DIY Soldering, 5cmx7cm
细节
- BrandGTIWUNG
- Product dimensions5L x 5W x 0.1H
- MaterialBakelite
- Number of circuits1
- Phase typeSingle Phase
描述
🛠️ Build Bold, Prototype Fast – Your Circuit’s Best Friend!
- EFFORTLESS MOUNTING - 4 corner mounting holes for quick, stable installation and soldering convenience
- GENEROUS 12 PACK SET - Multiple boards to fuel your innovation streak without running out mid-project
- ROBUST BAKELITE BUILD - Sturdy double-sided board ensures long-lasting durability for all your prototypes
- PRE PLATED COPPER PADS - Ready-to-solder copper holes speed up your DIY projects with reliable conductivity
- PRECISION ENGINEERED HOLES - 1mm diameter holes with perfect 2.54mm spacing for seamless component fit
This 12-piece set of 5x7 cm double-sided PCB prototype boards features durable bakelite material with 1mm holes spaced at 2.54mm, pre-plated copper pads for easy soldering, and 4 mounting holes per board, making it the perfect toolkit for professional-grade DIY electronics prototyping.
规格
| Manufacturer | GTIWUNG |
| Part Number | T386 |
| Product Dimensions | 5 x 5 x 0.12 cm; 60 g |
| Item model number | T386 |
| Colour | 12pcs PCB Universal Prototype Board 5 x 7 cm |
| Material | Bakelite |
| Item Package Quantity | 1 |
| Batteries included? | No |
| Batteries Required? | No |
| Item Weight | 60 g |
评论
A**R
Reliable project boards
These are just the right size for making up prototype boards for various NodeMCU ESP8266. I cut them to size with a Dremel and cutter wheel so that they could fit into the appropriate project boxes. The pads soldered well, and I had no problems with any of the pads lifting. So far, I am very happy with them. ✔️
A**R
NOT Pre-tinned. NOT plated through.
Boards arrived ok and look ok, except that they're bare copper - not tinned. Means soldering will be harder - probably need a rub with Scotchbright before use. Description says "Pre-tinned plated holes on the board make it very handy to solder components and sensors for your projects." Also, the board is singe-sided, i.e. the holes are NOT plated, the pads around them are. So that's two false claims in 2 words!
R**.
Ideal
These circuit boards are perfect for my projects. Delivery was super fast, ordered on a Friday and received via Royal Mail the following morning. Big thanks to the seller.
J**A
As described
Delivered on time and as described in sealed bag. Multiple boards, clean and easy to use for electronics
J**N
Copper doesn't stay on
The copper pads fall right off the board?? Basically useless
G**R
Item as shown
Very fast delivery and item as ordered, thank you.
G**E
First picture is wrong
The first picture is of a 9 x 15 perboard not a 9 x 7 one like you get. The 9 x 7 ones seem ok though.
A**.
Only just adequate for my purpose.
Not the best quality. Copper lifts too easily from board. Pay a bit more and get better quality.
