🔌 Switch to power, safety, and style — because your energy deserves the best!

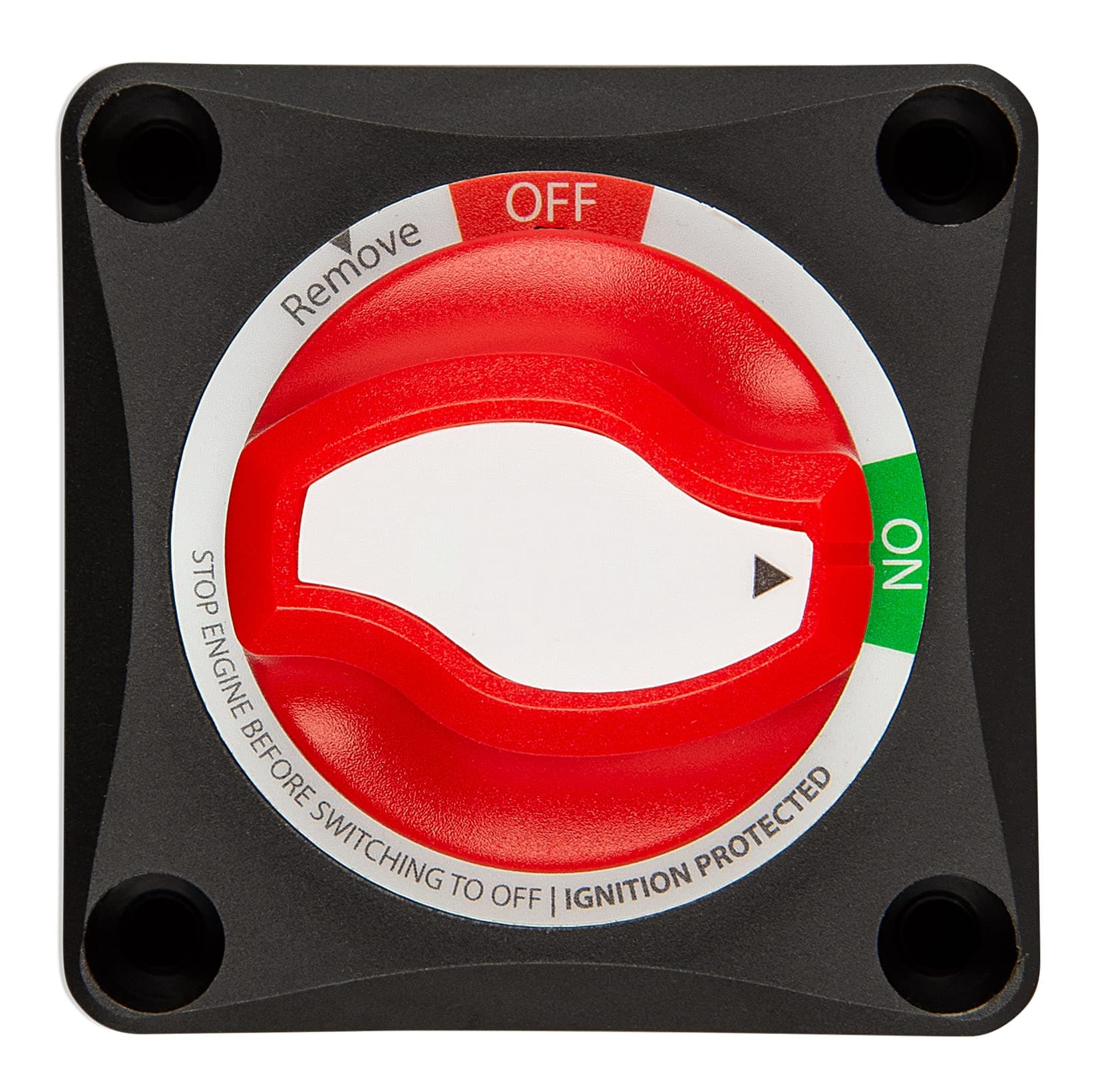

The Victron Energy Battery Switch ON/Off 275 amp is a high-capacity, versatile battery disconnect switch designed for systems up to 48V. Featuring a removable ergonomic knob for enhanced safety, it supports both surface and panel mounting options. With a durable IP54 rating, it’s engineered to perform reliably in engine rooms and harsh environments, making it an essential upgrade for professional-grade battery management.
| ASIN | B095X94JXF |
| Actuator Type | Rotary |
| Best Sellers Rank | #96,304 in Automotive ( See Top 100 in Automotive ) #158 in Automotive Replacement Battery Switches |
| Brand | Victron Energy |
| Brand Name | Victron Energy |
| Circuit Type | 1-way |
| Color | No Color |
| Compatible Devices | Devices that operate within 48V and require battery disconnection/safety switches, including those used in engine rooms |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Tin-plated Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| Control Type | ON-OFF |
| Current Rating | 275 Amps |
| Customer Reviews | 4.5 4.5 out of 5 stars (250) |
| Date First Available | May 2, 2021 |
| EU Spare Part Availability Duration | 1 Years |
| Included Components | Victron Energy Battery Switch ON/Off 275 amp |
| International Protection Rating | IP54 |
| Item Dimensions LxWxH | 2.72 x 2.99 x 2.72 inches |
| Item Package Dimensions L x W x H | 5.39 x 3.86 x 3.15 inches |
| Item dimensions L x W x H | 2.72 x 2.99 x 2.72 inches |
| Lower Temperature Rating | 50 Degrees Celsius |
| Manufacturer | Victron Energy |
| Model Name | Victron Energy Battery Switch ON/Off 275 amp |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 48 Volts |
| Operation Mode | ON-OFF |
| Package Weight | 0.28 Kilograms |
| Part Number | VBS127010010 |
| Size | One Size |
| Suggested Users | unisex-adult |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 150 Degrees Celsius |
| Vehicle Service Type | boat, car |
| Warranty Description | Warranty |
| Wattage | 13200 watts |
A**.
Great product
Quality product from Victron energy. Happy with my purchase and would recommend VE to anyone. The App and website make everything super easy to install.
J**O
Excelente
Ok
R**A
Victron switch
Ok
P**R
Not a bolt-on for Victron shunts
The product works fine but I was expecting it to be designed as a bolt-on for a Victron shunt or distributor. It wasn’t, which means that I could have used any brand.
J**G
Compact power switch
I needed a name brand high current power cutoff switch that would mount on an uneven surface in a tight area and this fit the bill.
G**.
Dependable Quality
Item exactly as described, fast shipping, quality product.
R**N
Safety precautions
Used on solar installation on motor home
G**S
DOA switch
DOA switch based on testing. Returned for refund
M**.
Good product better than the cheaper ones
A**S
Perfecto,de momento bien 4meses montado
K**N
Switch used for 48V Solar ESS Batterys Mounted them inside a metal cabinet with switch operating handle protruding through the cabinet . Easy mount, cardboard template included in package, make 2" hole in cabinet for switch collar to protrude through, drill the 4 small holes for the mounting screws. Use 4 --- 6/32 x 2" machine screws & 8 --- 6/32 nuts . switch housing for the 4 screws is internally hex molded on inside so you tighten the screws to hold switch in the cabinet, after you tighten cables on switch stud install the blank cover on back of switch & hold in place with the 4 remaining nuts. Note switch only comes with 4 wood screws, 6/32 screws are available at most hardware stores
A**G
Ich nutze den Victron Battery Switch ON/OFF 275A in meinem 48-V-System (Victron MultiPlus, LiFePO₄-Batterien) – und der Schalter macht genau das, was er soll: zuverlässig trennen und sicher abschalten. Der Schalter wirkt direkt beim Auspacken massiv, sauber verarbeitet und mechanisch präzise. Kein billiges Plastik, kein wackeliges Drehrad – typisch Victron. Die Anschlüsse sind groß genug für kräftige Kabelquerschnitte, der Drehmechanismus rastet sauber ein und vermittelt echtes Vertrauen. Was mir besonders gefällt: Sehr hoher Dauerstrom (275 A) – ideal für stärkere Inverter Satte Haptik, kein labbriges Drehen Hohe Sicherheit: klare Positionen ON/OFF ohne „Zwischenzustände“ Montage unkompliziert, auch in engen Schaltschränken Ich nutze den Schalter täglich zum sicheren Trennen bei Wartung, Firmware-Updates und Arbeiten am DC-Pfad. Keine Hitzeentwicklung, keine Kontaktprobleme, keine Abnutzung – und das bei intensiver Nutzung. Fazit: Ein absolut zuverlässiger, hochwertiger Batterieschalter – nicht der günstigste, aber jeder Euro für die Sicherheit und Robustheit ist gut investiert. Wer ein Victron-System oder ein stärkeres DC-Setup betreibt, macht hier nichts falsch.
G**N
It just works. That's the beauty of Victron.
