C25 - Ethernet Smooth Stepper Terminal Board
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5

C25 - Ethernet Smooth Stepper Terminal Board

4.3/5
Product ID: 46060189
Secure Transaction

Details

  • Brand
    CNC4PC
  • CPU Socket
    LGA 775
  • Compatible Devices
    Personal
  • Compatible Processors
    Intel Core 2
  • Chipset Type
    Intel
  • Model Name
    C25
🔌34 I/O pins for versatile connectivity
🔧Screw-on terminals for easy, secure wiring
🛡️Built-in low pass filters for noise reduction

Description

⚡ Power your CNC with precision and ease—connect, control, conquer!

  • TOOL FREE SETUP - Screw-on terminals make wiring fast, secure, and hassle-free—no electronics degree needed
  • NOISE FREE PRECISION - Passive low pass filters minimize signal interference for reliable input accuracy
  • SEAMLESS INTEGRATION - Directly connects to Warp9 Smooth Stepper for plug-and-play CNC control
  • UNIVERSAL COMPATIBILITY - Supports all TTL 5VDC signals, perfect for parallel port and CNC4PC interfaces
  • USER FRIENDLY GROUNDING - Close-proximity ground pins eliminate complex wiring headaches

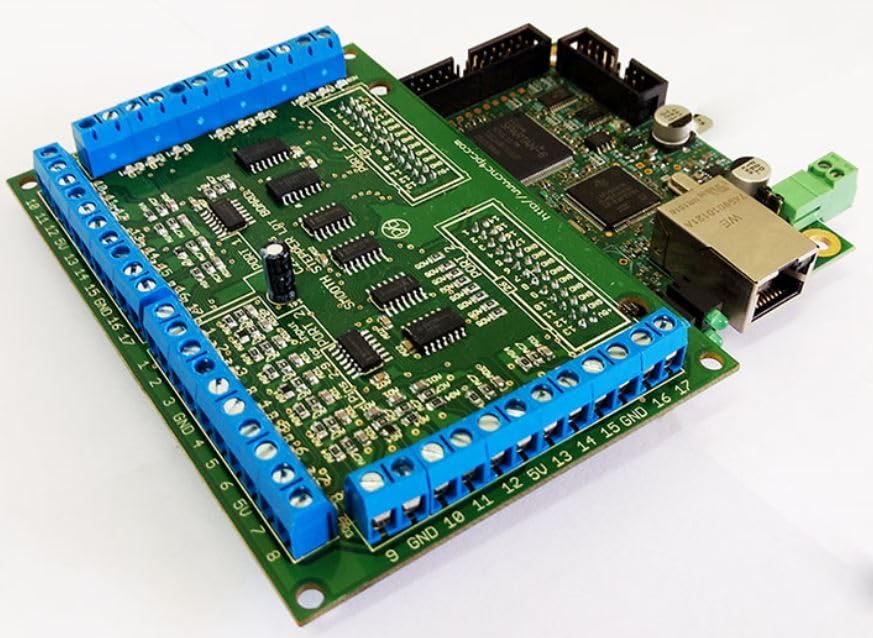

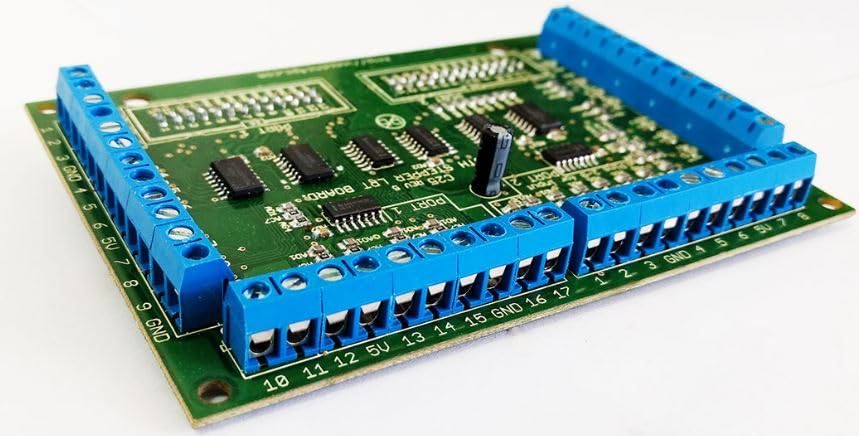

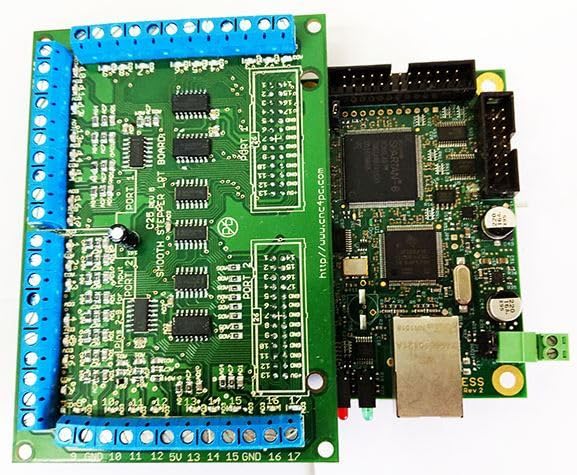

The C25 Ethernet Smooth Stepper Terminal Board offers 34 versatile I/O pins with built-in passive low pass filters to reduce noise, ensuring clean signal transmission. Designed for seamless connection to Warp9's Smooth Stepper, it supports all TTL 5VDC signals and features screw-on terminals with close ground pins for easy, reliable wiring—ideal for professional CNC automation setups.

Have a Question? See What Others Asked

Are there better picture of this board? Images are too small to see any detail.
What function does it perform? Give exact details.
Does this work with the usb smooth stepper?

Reviews

4.3

All from verified purchases

J**N

2 ports

it makes two of the three ports easy to use. I wish someone would make a board that interfaced them all (also port 3 and the expansion port)

D**Z

Working fine.

Could have come with some sample wiring schematics.

J**.

Five Stars

Part as expected and sent efficiently.

D**N

While this might work ok, I'm giving it a ...

While this might work ok, I'm giving it a one star review for the support or should I say lack of support. I have tried numerous times to communicate but no one is available. If you are ok with trying to figure stuff out on your own by looking up data sheets for the parts to see how they are configured go ahead and buy it. Just don't expect any response from the manufacturer...
