Question 1

How does this pump save me money?  Why does it reduce the energy cost by up to 80%?  Does it change speeds based on flow feedback?

Accepted Answer

The pump has a variety of speeds. It is programmable. When mine turns on, it is programmed at high speed for 30 minutes to clear the surface and get the water moving. My pool man programmed it for me to drop to 30% for the next 5 hours. That saves me $$. Now if I'm having people over to swim, i can hit a quick clean button to clear the surface again. The longer i can keep the pump running at less than full power the more money I save.

Question 2

My 1hp pump went out and heard a variable speed pump is the way to go when replacing it. is it ok to go up to a 1.5 hp

Accepted Answer

Variable speed pumps can be set to handle different flows to accommodate pipe size, I use this pump to replace a 1.5 HP pool filter pump (2" pipe)and a 1 HP spa jets pump (1-1/2" pipe). Just program the speed (RPM) to accommodate the use and the flow of the pipe sizes.
By only running the pump at the design capacity of the plumbing, noise is reduces to a wiper and it actually uses about half the energy that the original pump uses (in my case 400 watts vs 800 for the spa, yours may be different).
All the speed in both pumps are set lower than 3000 RPM. No issues vacuuming (cleaning) and the Jets are quite strong in the spa).
If you can effort the extra cost variable speed pumps are more versatile and they don't destroy their self by running full speed.

Question 3

Is this a self priming pump?

Accepted Answer

yes after your first operation annually each morning it runs for 5 minutes at high speed and primes itself.  I have never started spring without pouring water in the pot as I always did with my previous pump.  Never after that even after cleaning the debris bucket do I prime again.

Question 4

Will this pump be sufficient for a 11,000 gallon pool which has a pv3 in-floor pool cleaning system? i currently have hayward sp3215ee tristar 1.5hp

Accepted Answer

I don't have the PV3 cleaning system.
In my opinion this pump outperforms all single speed 1.5 HP pumps if programmed right (60 to 100 GPM depending on TDH).
I reprogrammed the "Quick Clean" function for swiping the pool clean, I imaging that in your case after the nozzles lift, then you can set the speed  of the pump for optimal flow, energy savings and noise comfort.
Because the regular programming uses a lower RPM in the second stage to save energy, that flow may not have enough to allow your system to work properly, unless you also reprogram that cycle phase and time.
During the setup of my pump, I needed to lower the recommended RPM of the pump to get the right flow for my 1-1/2" piping, that saves even more energy and make the pump almost silent.
My settings for filtering the water 2400, 1400, 2400 RPM (2, 4, 2 hours)
For sweeping the pool the pool 3000 RPM 1 hour (Quick Clean)
This is the best pump I ever owned (single speed vs variable speed comparison) and a more powerful pump in my and case, only my case, is not needed or wanted.

Manufacturer	Pentair - Distribution
Part number	342001
Item Weight	15.9 Kilograms
Product Dimensions	71.12 x 39.37 x 31.75 cm; 15.88 kg
Item model number	342001
Size	Pack of 1
Color	White
Style	Submersible
Material	Plastic
Power source type	Wood Pellet
Voltage	230 Volts
Horsepower	0.5 hp
Item Package Quantity	1
Flow Rate	112 Gallons Per Minute
Specific uses	in ground
Included components	Pentair SuperFlo VS Variable Speed Pool Pump, 342001
Batteries Included?	No
Batteries Required?	No

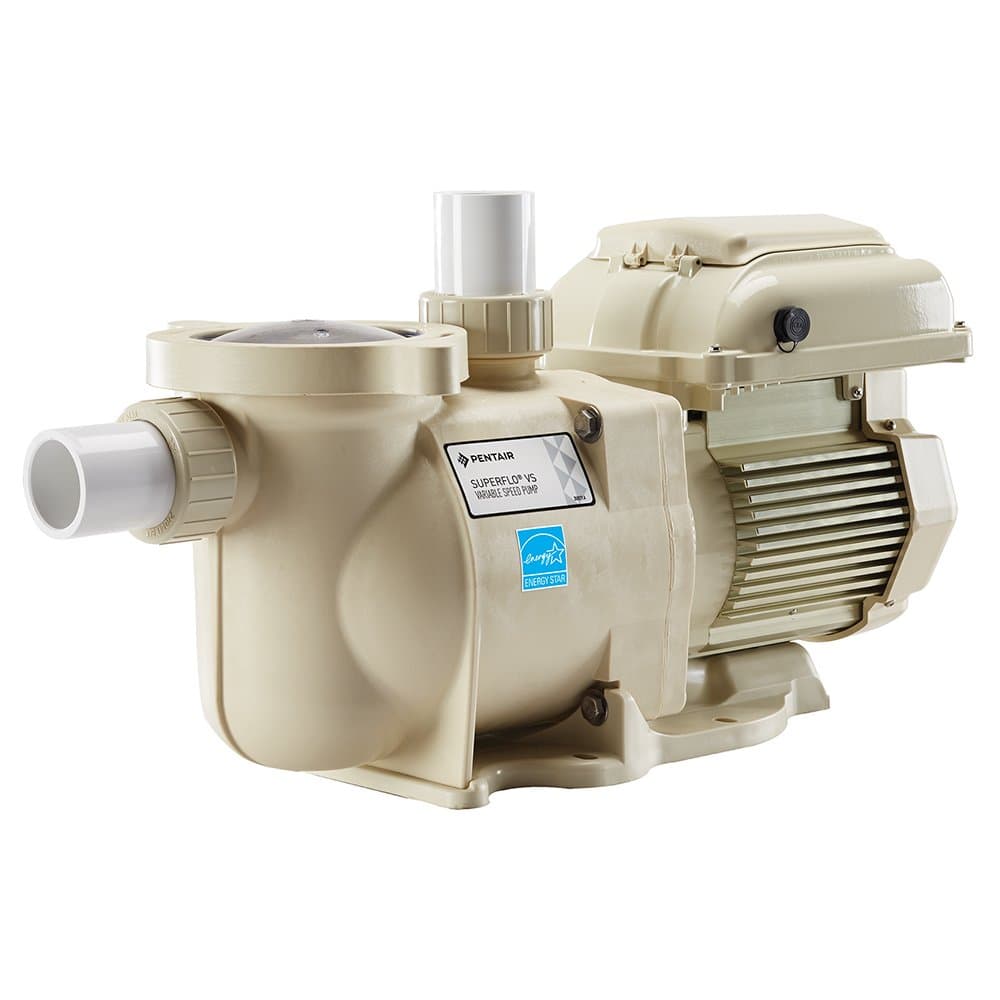

Pentair 342001 SuperFlo VS Variable Speed Pool Pump, 1 1/2 Horsepower, 115/208-230 Volt, 1 Phase - Energy Star Certified
