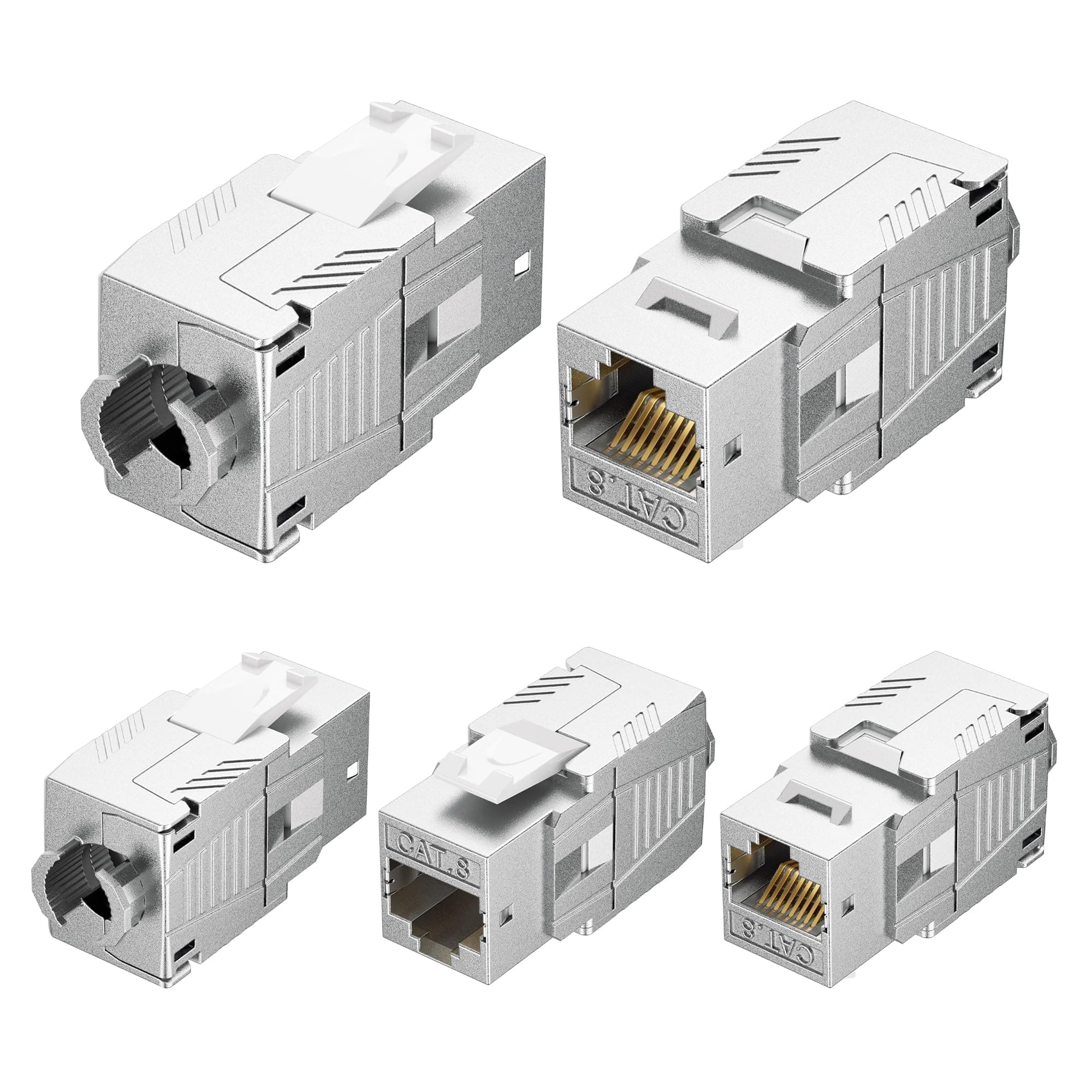

Cable Matters [UL Listed] 5-Pack 40Gbps Shielded RJ45 Cat 8, Cat8 Keystone Jack for Patch Panel, Wall Plate

Over the past 5 years I've installed well over 100 of these keystone jacks, all on 22 or 23 AWG Cat 7 or 8 SFTP cable, and I'm having trouble remembering ever having one of these fail to work (though I have miswired a couple, it takes some work to get them back open to fix that). While dealing with shielded cable with foil-wrapped pairs always requires a bit of fiddling, getting the connector on once the fiddling is done is quick and simple. Beyond the cable stripper the only tools required are a pair of flush cutter pliers and, if you aren't strong enough to squeeze the shell closed with your fingers (I'm not), something to do that; I invested in the Cable Matters tool for this but vice grips work just fine too. I do find that the foil strip included with the connector is a bit too small so I cut my own from a roll of 1/2" 3M 1181 instead. Last, I'll just note that with all the cables I've used these on so far the 568B wiring has been a slightly better match for the cap arrangement (the wires come out of the cable exactly where you want them for 568B at one end and just one crossover at the other), though that depends on how the cable manufacturer arranges the colors and I don't know if they all do it the same. In my experience these are really nice connectors that install easily and work well. I usually use a Fluke tester to verify newly-installed links and I don't recall ever having one that didn't pass for the tester's 10GBaseT maximum and the POE test. It may be that these connectors work less well with smaller wire sizes and/or thinner insulation, though.

Easy to install. Pricey but the frustration free installation is worth every penny. They work great with my CAT 7a cables. No need for a punch down tool. However I used long angled needle-nosed pliers to pinch down the 2 pieces. Unless you have a strong grip, it’s tough. I also installed on CAT 6, unshielded wire and it’s a little overkill as these are made for the thick shielded cables. They will work nicely however on the 6. No degrading of speed. These are definitely heavy duty, I ordered more just in case there is a need in the future.

I was looking to simplify my installation of female RJ45 plugs and found these. With the exceptiion of an ethernet cable stripper, and a pair of pliers, no other tools were required to wire up these female RJ45 keystone connectors. After installation I verified that I was betting 10gb throughput on the line. The only reason I did not give a 5 star review was that some the female RJ45 connectors had been pressed together an locked in the closed position -- and they are extremely difficult to unlock once locked.

These Cat 8 keystones work great and are very high quality. After installing a couple of times on the ends of my Cat 8 shielded cables I got the technique down. While it says no tools required, I found I couldn't snap the keystones closed with my fingers but found that channel lock pliers worked great. Having enough extra length of twisted pairs really helped when trying to work each wire into its proper slot.

I bought 10 expensive cat 7 keystone wall jacks from sunny tech to fit into two 6 keystone wall plates. All of them had weird loose connections that sent me through the roof trying to jiggle them to figure out what was the best position for them to stay connected. Breath on them and I’d loose connectivity. Called and their support was no help and refused to accept a return even after I had bought over 2000 feet of cat cable, over 100 connectors and more than 2 dozen keystone jacks from them. I replaced their cat 7 with ones from cable matters and fixed my problem in one afternoon - all of them! No matter what position my cables are in, my connectivity stays! No more loosing internet. Installation was easy and fool proof if you have sliding jaw pliers and flush cutting scissors. A little expensive but well worth the cost for the trouble I’ve been through. Thank you, Cables Matter!

Pros: They work and not hard to put together. Cons: price and they give you an odd number of jacks 5.i need 1 more. When installing the wires look at the 4th step on the instructional paper(the 2 triangles or 2 triangles and a circle get white wires)...on the orange / green side the orange square above the green square gets the orange wire...the green square above the orange square gets the green wire. I used a plastic thin car molding remover to push in the wires and cut them as close as possible with small scissors ( the type you'd find in a barbers clipper set) For step 6 in the instructions i closed the jack with the after pushing the 2 parts together...this did the trick Step 7 was annoying but possible without that tool i used my hands to close it If you dont hear a "snap" sound then its not properly closed If you make a mistake and must reopen the cat8 jack use a small thin flathead screw driver and just pry it open Both cables i put the cat8 jack work fine.

Fished a Cat8 cable today and installed one of these keystones. The instructions require someone who has terminated ethernet before. But to me the instructions were clear and the experience of installing this product was the easiest it’s ever been to complete an ethernet project. The hardest part was using the small strip of copper foil tape. If you make a mistake, out of luck. The foil tape step is probably not necessary, but does allow the auto-crimp function to work a little better. If recommend people have extra foil tape. Because all other parts of the keystone are very reusable and forgiving if you make a mistake.
