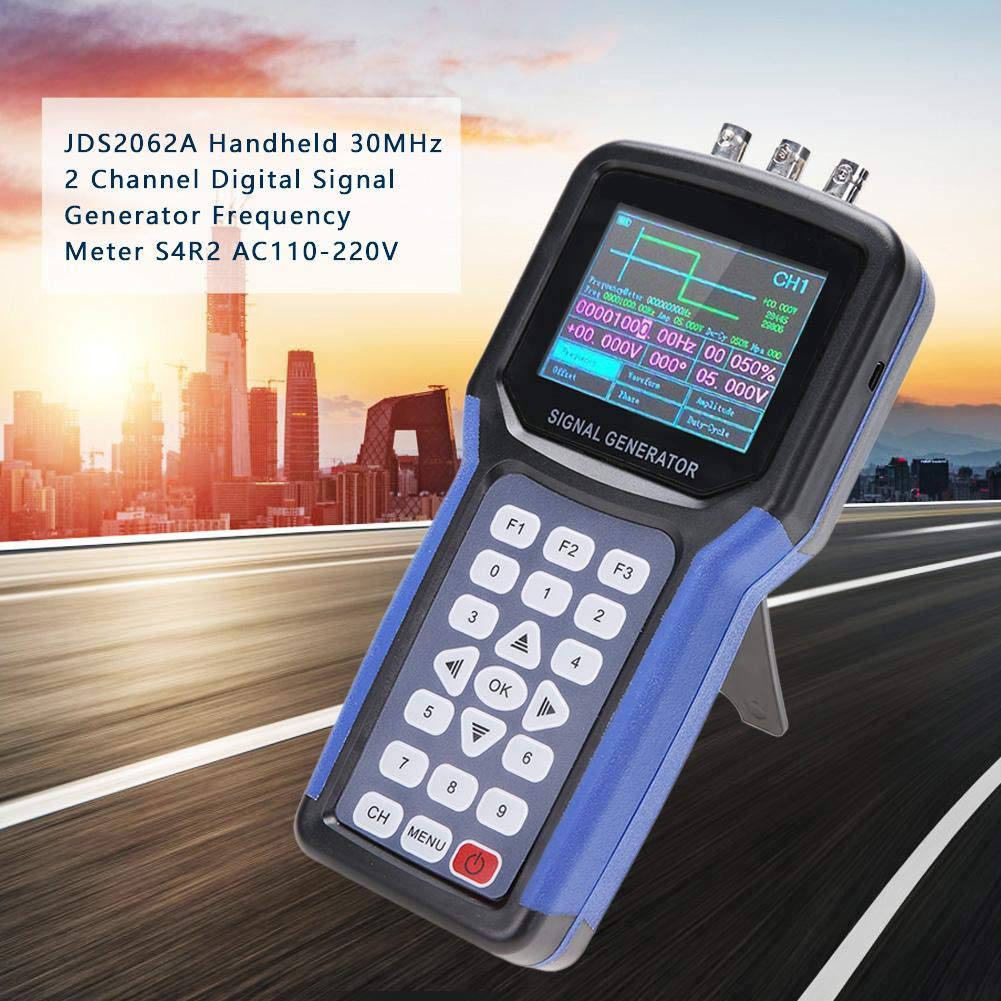

Pangding JDS2062A Handheld 2 Channel Digital Signal Generator Frequency Meter S4R2 AC110-220V(US)
产品编号: 202425493
安全交易
经常一起购买
描述

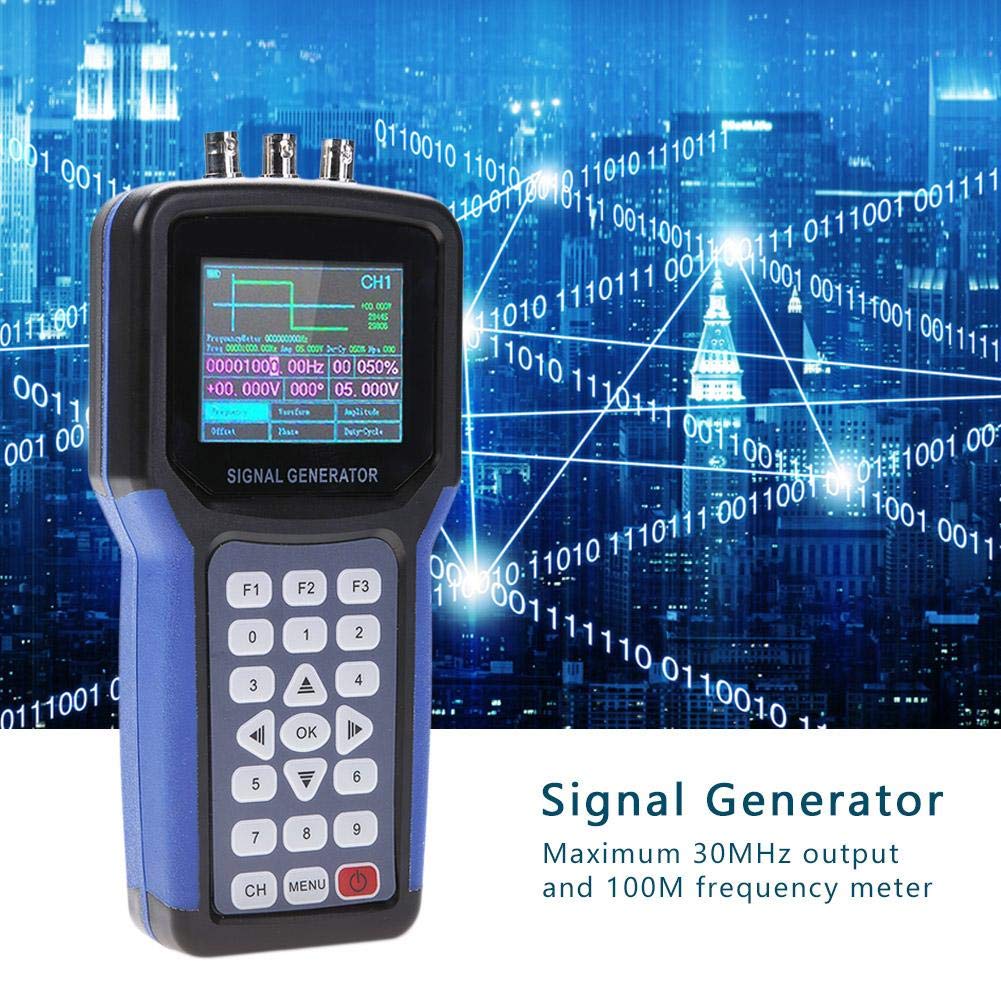

- Professional digital signal generator with 2CH(double channel). Maximum 30MHz output and 100M frequency meter. Waveform type(Comes with): square wave, sine wave, triangle wave, trapezoidal wave, exponential wave, half-sine wave, positive and negative triangular wave, ringing wave, etc.

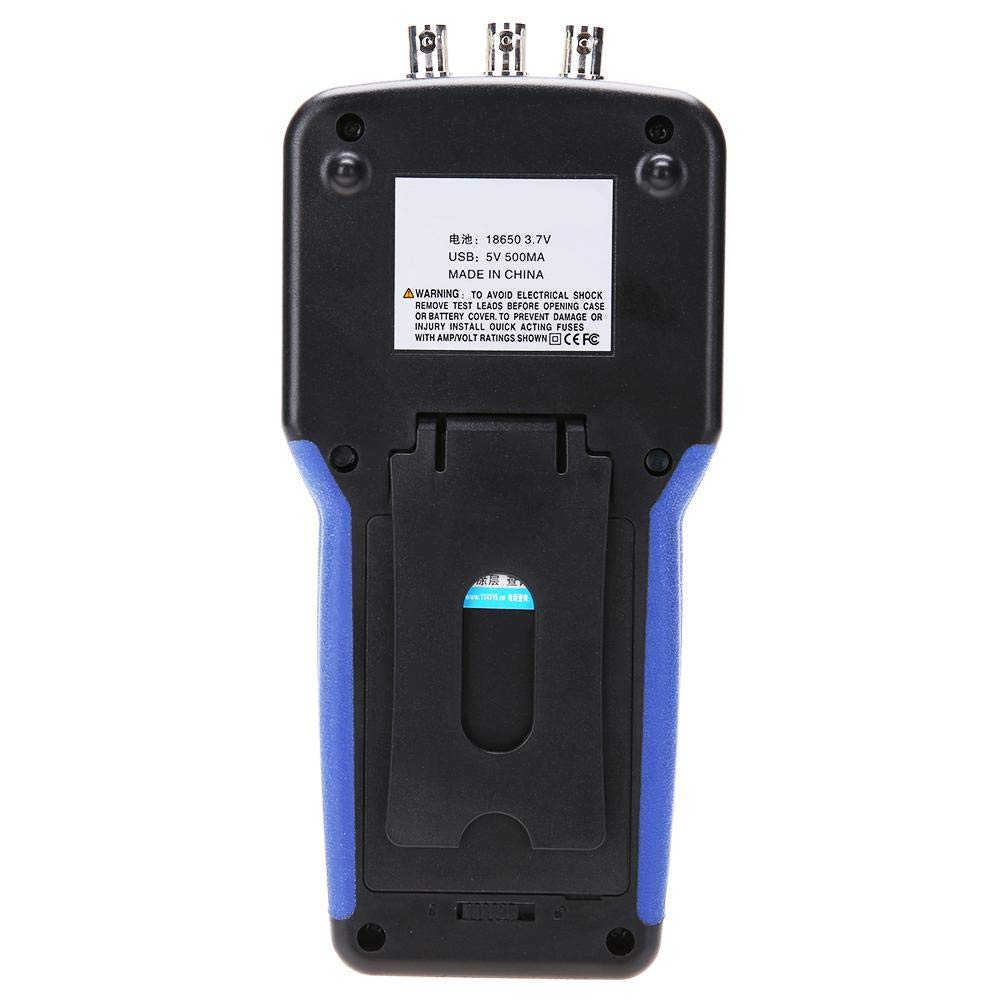

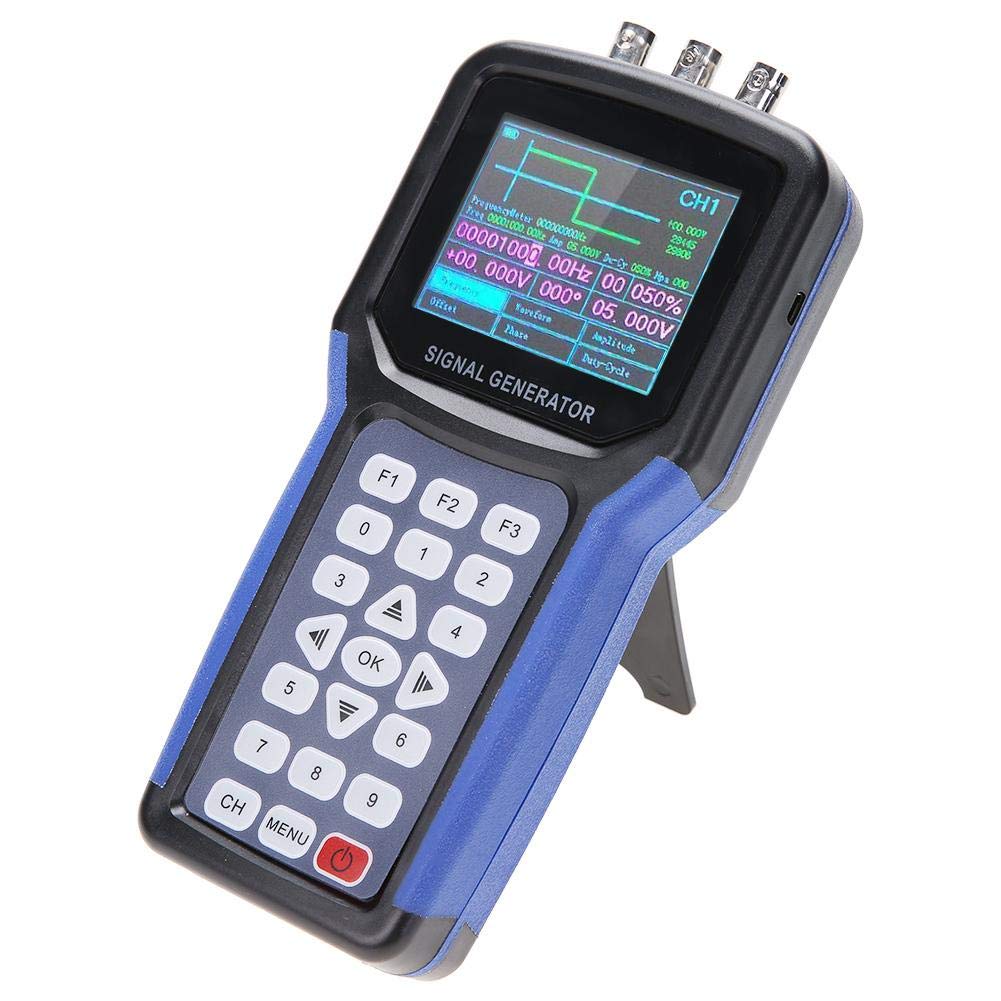

- Colorful 3.2" LCD display with 320*240 pixels resolution, easy and clear for reading.Powered by 1*18650 3.7V lithium battery(not included), with battery charger for convenient charging. Can also use USB cable to connect to other mobile devices for power supply.
- Sine Wave: 0.01Hz - 30MHz (minimum resolution 0.01Hz)/Square Wave: 0.01Hz - 25Mhz (minimum resolution 0.01Hz)/Triangle Wave: 0.01Hz - 25Mhz (minimum resolution 0.01Hz)/Other Waveform: 0.01Hz - 6MHz (minimum resolution 0.01Hz)/Custom Waveform: 1Hz - 6MHz (minimum resolution 1Hz)/Square Wave Rise Time: ≤10ns/Custom Waveform: 98 (the waveform drawn by the user himself)/Number of Waveform Points: 2048 (maximum)
- Vertical Resolution: 14 bits /Square Wave Overshoot: ≤5% /Square Wave Duty Cycle: 0%-100% /Output Signal Amplitude Range: ≤5MHz (2mV - 20V), ≥5MHz≤10MHz (2mV - 10V), ≥10MHz≤30MHz (2mV - 5V) /Minimum Amplitude: 2mV /Minimum Amplitude Increment: 1mV
- Output Signal Offset Range: ≤500mV (±1V (total maximum)), ＞500mV (±10V (total maximum))/Minimum Offset Increment: 1mV/Adjustable Phase: 0°- 360°/Minimum Phase Increment: 1°/Frequency Sweep Channel: CH1 CH2 (can be simultaneously)/Frequency Meter: Input 1Hz - 100MHz (input voltage range 200mV-20V)

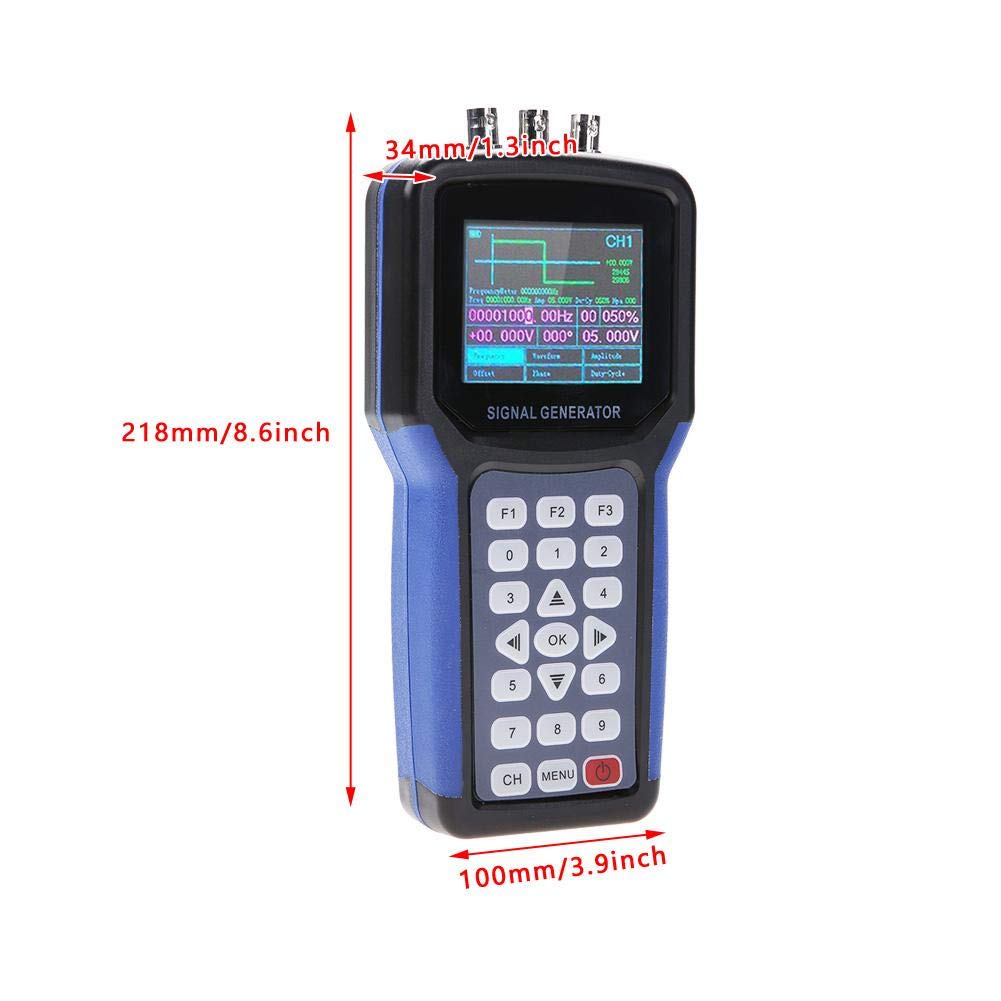

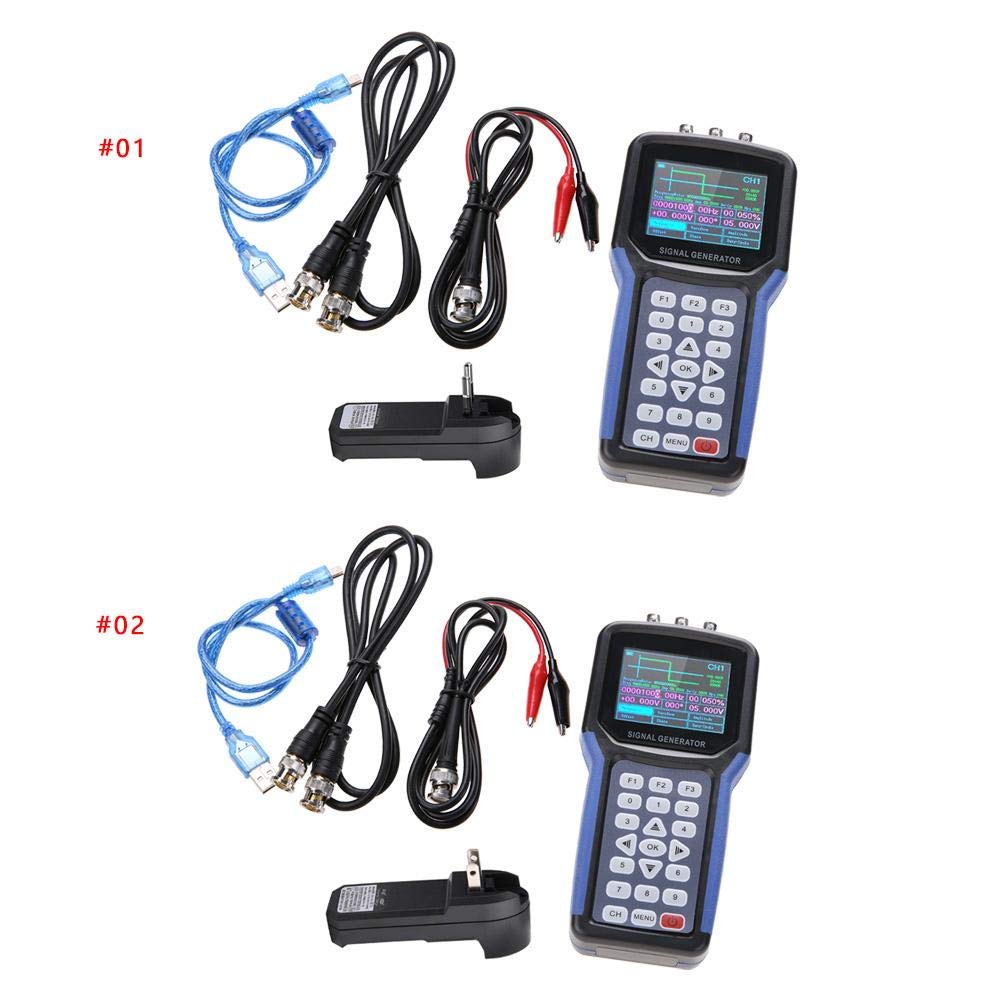

Specifications: Model: JDS2062A Voltage: AC110-220V Plug Type(Optional): US plug, EU plug Display: Full Color TFT LCD Display(320*240 pixels) Channel: 2 Power Supply: 1 * 18650 3.7V 3600mAh Battery(NOT Included) Size:218*100*34mm/8.6*3.9*1.3in Weight: Approx.765g/27oz Package list: 1 * Signal Generator (Battery NOT Included) 1 * Signal Source Output cable 1 * BNC Connecting cable 1 * Battery Charger 1 * USB Cable Note: Please kindly make a note if you need any plug adapter.
