⚡ Slide into sleek protection — your PCB’s new power move!

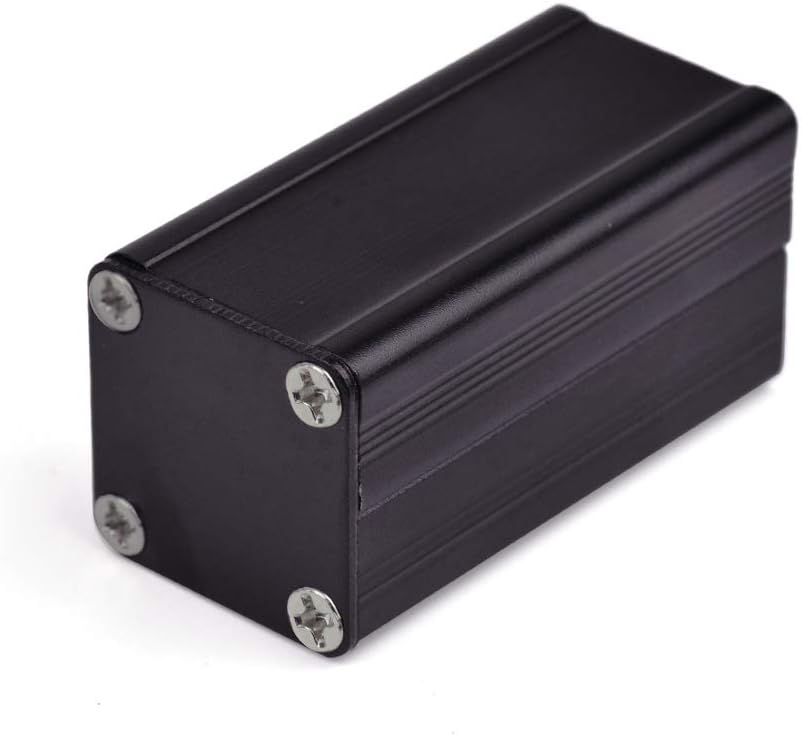

The Eightwood Extruded Aluminum Box is a compact, durable enclosure designed for electronic projects. Measuring 1.97 x 0.98 x 0.98 inches, it features heavy-duty extruded aluminum construction with a matte anodized finish for corrosion resistance and heat dissipation. Its sliding extrusion top and built-in PCB slots provide easy access and secure mounting for circuit boards up to 50mm, making it ideal for power supplies, amplifiers, and other DIY electronics.
| ASIN | B010DHQLEI |
| Best Sellers Rank | #543,063 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #1,119 in Electrical Boxes |
| Brand | Eightwood |
| Brand Name | Eightwood |
| Color | Black |
| Customer Reviews | 4.4 out of 5 stars 62 Reviews |
| Finish Type | Matte Anodized |
| Installation Type | Screw-In |
| Item Dimensions D x W x H | 0.98"D x 0.98"W x 0.98"H |
| Manufacturer | Eightwood |
| Material | Aluminum |
| Model Number | ZBOXLV16 |
| Product Dimensions | 0.98"D x 0.98"W x 0.98"H |
| Style | Professional |
| UPC | 712321167811 |
D**L
Just what you are looking for.
Needed a small box to put a small dpdt switch in and it was perfect. Well made and looks sharp.
T**D
Well made. Recommended.
I purchased this enclosure case to house a boost converter Gowoops 2PCS of Boost Converter Module XL6009 5-32V to 5-35V DC-DC Output Voltage Adjustable Step up Circuit Board 400KHz Big Current 4A for a DIY external power source for the Panasonic Lumix LX-10 camera. The enclosure is well made with no jagged edges, abrasions, or deformity. The enclosure is made of 16 gauge aluminum, and the end plates are made of 18 gauge aluminum. The width in the grooves to hold the circuit board measured 23.26 mm. The inner dimension is approximately square and the width and height measured 21.11 mm. The product description notes an outer length of 50 mm, but this actually does not include the end plates, so you could fit a circuit board that is up to 50 mm long.
I**N
Hobby box
I'm into electronics I use the boxes all the time to build projects. Nice to work with way they put together. The way they put together it's easy to put you components in.
T**N
A handy enclosure for RF filters.
These are much more reasonably priced compaired to other small enclosures out there. Price is probably the main reason that I purchased this.
I**R
Well made
A good well made little box. I couldn't use it because I accidentally ordered the wrong size. But it's well constructed so I'll use it eventually.
S**A
Like a glove
This product did the job it’s intended to do. Hubby was impressed by how easy it was to set up and the durability.
K**G
perfect for what i needed it for
Quality product, perfect for what i needed it for.
G**E
Beware, box is anodized and makes poor electrical connections
Beware, everything is anodized which is nice for protection but poor for making electrical connections. (Anodized surfaces are poor electrical conductors) Even the screws seem to be anodized. So when it is all screwed together none of the pieces are making good electrical contact. I thought if the screws were tightened hard they might scratch the surface enough to make contact with the aluminum but I still measured 5 ohms resistance between the end pieces. So don't expect this box to provide electrical shielding as-is. I had to run a tap through the screw holes and switch to stainless screws (M3 metric). I wish they would sell a plain aluminum box instead because it really is a nice design otherwise. One nice feature, SO-239 UHF connectors fit perfectly in place of the end cap pieces. See picture. Sweet! Look at the dimensions carefully--this really is a tiny box, which is perfect for my use but maybe not yours.
