描述
- Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.

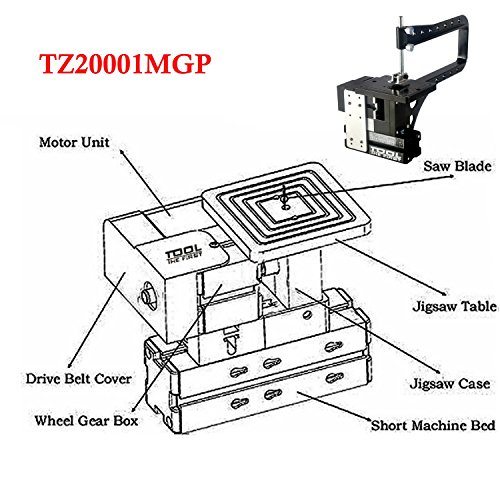

- Main parts include headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, jigsaw table, connection piece , drive belt cover etc. All of the parts are made of metal except drive belt cover.
- With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contacts.
- Allow straight-line cutting and curve cutting.
▶Technical parameters: 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)2.Input voltage/current/power:12VDC/5A/60W3.Working table size:90mm*90mm 4.Maximum working material thickness: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm. 5.The transformer has over-current protection, over-voltage protection, over heating protection. 6. With bow-shaped arm. The material of bow-shaped arm with its accessories is metal which increases its durability.7.Motor power :144W.8.Bow-Arm:46 mm *270 mm *300 mm
