Golden Age Standard Wiring Kit for Stratocaster

描述

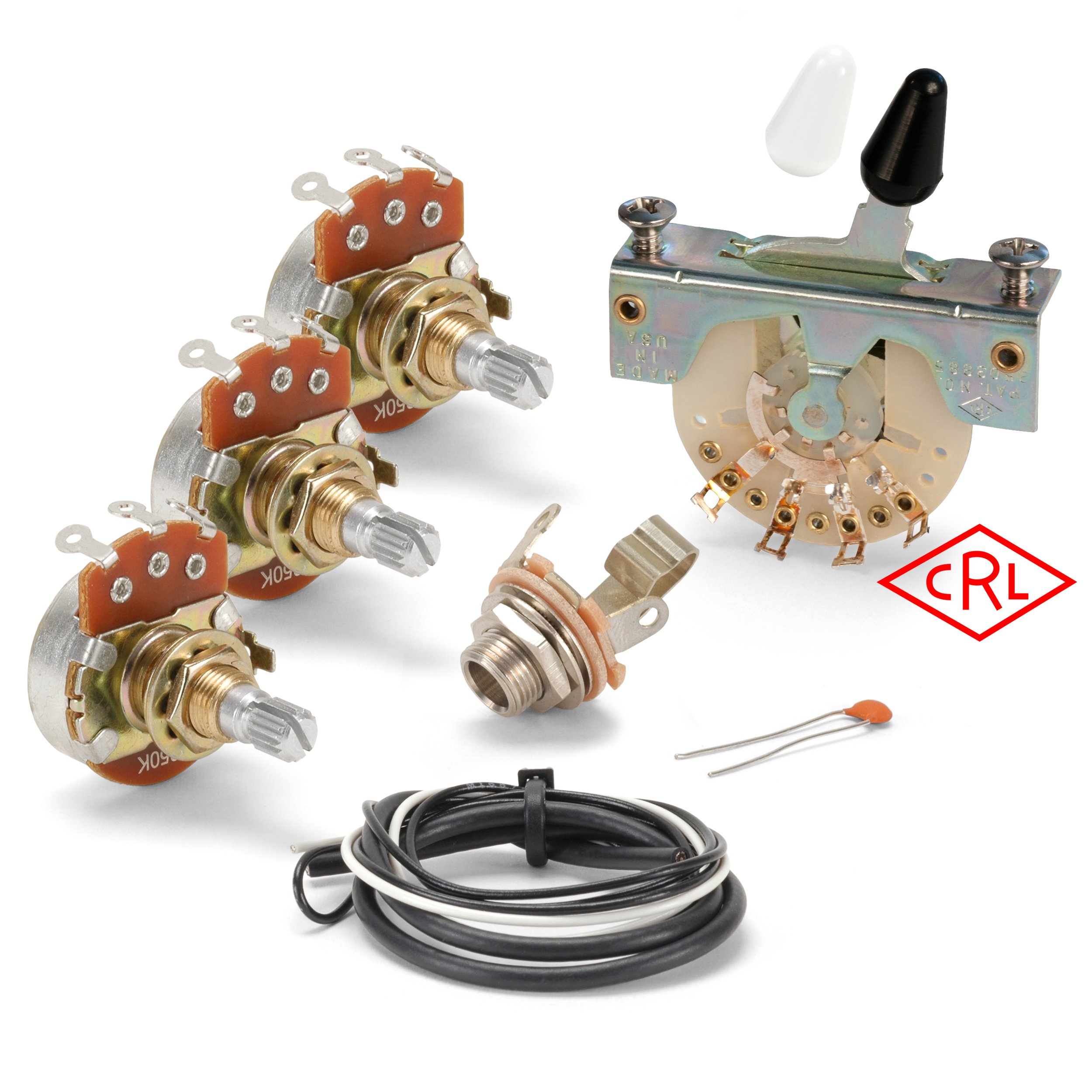

Here's what you need for wiring those pickups into your Strat®! All the parts you'll need, plus a diagram to show you how.This standard kit is an economical choice for any wiring job. It has standard PVC-insulated wire and Alpha pots.Standard Wiring Kit for Stratocaster includes:1 - 1/4" output jack1 - .047uF ceramic capacitor1 - CRL 5-way lever switch with mounting screws2 - switch knobs (1 black and 1 white)3 - 250K Alpha control pots (knobs NOT included)Non-shielded PVC-insulated circuit wire: 22AWG, white, 12" longNon-shielded PVC-insulated circuit wire: 22 AWG, black, 24" longShielded guitar circuit wire: 26 AWG, black, 12" longWiring diagramBe sure your control knobs will fit! Alpha pots have a coarse-knurled 18-spline split shaft.Alpha control pot specifications:– Shaft diameter: 6mm split shaft, coarse knurling– Thread: M8 x 0.75– Thread height: 3/8" (9.52mm)– Required mounting hole diameter: 5/16" (7.94mm)CRL 5-way lever switch specifications:– Body cavity depth required: 1-3/8" (34.93mm)– Mounting screw spacking: 1-5/8" (41.28mm)– Lever stem: .052" x .188" (1.32mm x 4.78mm)– Pickguard slot required: 1/16" x 1-1/16" (1.59mm x 26.99mm)
